HCW Smart System Parking Barrier Gate with License Plate Recognition and Automatic Lifting for Efficient Traffic Control
| Lieu d'origine | Chine |
|---|---|
| Nom de marque | HCW |
| Numéro de modèle | cw242 |
| Quantité de commande min | 50 |
| Prix | 210 |
| Délai de livraison | 5 |
| Capacité d'approvisionnement | 1000 |
Contactez-moi pour des aperçus gratuits et des bons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.
xDétails sur le produit
| Model | CW242 | Power supply | AC220V±10%，50Hz |
|---|---|---|---|
| Working temperature | -35℃~+70℃ | environment humidity | 5%~95% |
| Rod length | ≤ 6m straight pole，≤ 6m telescopic，≤ 5.5m 2 column,≤ 4.5m 3 column | Motor | DC brush-less |
| Motor power | 150W | Start and drop time | ≤ 5.5m 2 column,≤ 4.5m 3 column （2.5~6s adjustable） |
| Anti-smashing car function | Rebound when encountering resistance and open the gate | input control signal | Switch |
| Mettre en évidence | Smart System Parking Barrier Gate,License Plate Recognition Boom Barrier Gate,Automatic Lifting Automatic Barrier Gate |
||
Description de produit
Parking Barrier Gate with Smart System Including License Plate Recognition and Automatic Lifting
Brushless DC Motor Barrier Gate - Silent & Efficient, Zero-Control Error
Designed to meet market demands for rapid lift-off and stability, our CW219 series combines the best features of barrier gate technology with advanced digital control systems for intelligent operation management.
Key Features

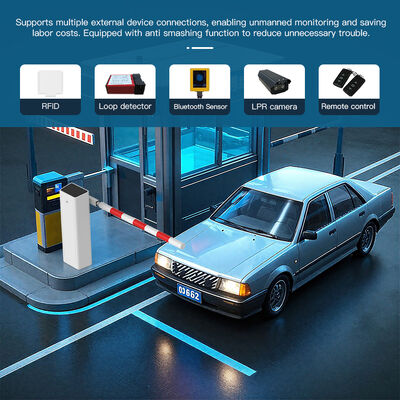

- Smart barrier system with license plate recognition and remote control operation
- Rapid response time <1s, improving traffic efficiency by 30%
- High-sensitivity anti-crushing technology with dual infrared + pressure detection
- Automatic rebound upon obstruction for 100% safety
- Industrial-grade motor design with IP42 waterproof rating
- Stable operation in extreme environments (-30℃ to 70℃)
- 500,000+ lifting cycle lifespan
- Cloud-based data management with real-time monitoring
- Multi-device networking capability
- Low-power standby mode reduces energy consumption by 80%
Technical Specifications
| Product Name | CW242 |
|---|---|
| Motor | DC brushless |
| Power Supply | 150w |
| Material | Cold Rolled Steel |
| Application | Roadway Safety |
| Surface Treatment | Galvanized + Powder Coated |
| Thickness | 1.5mm |

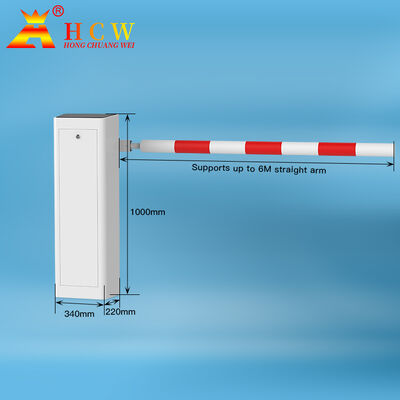

| Size | 340*220*1000mm |
| Working Environment | -30℃~+70℃ |

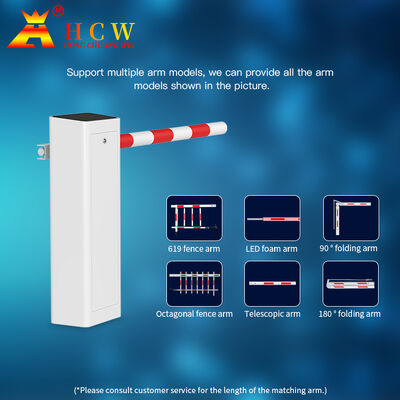

| Available Poles | Straight arm, folding arm, fence boom, foam rod |
| Support Length | Straight arm≤6m, fence boom≤4.5m |
| Foldable Rod Types | 90° and 180° |
| Lift and Drop Time | 1.5~6s (Adjustable) |
| Noise Level | Lower than 50db |
| Protection Features | Motor overcurrent, overload, short circuit protection, motor failure protection, power reverse connection protection |
Product Images
Advanced Features
The CW219 series features an integrated design with frame, reducer, and transmission mechanism in one structure to minimize vibration and improve operation accuracy. The electrostatic dust and high-temperature baking paint (180-250°C) process ensures corrosion resistance, color retention, and easy maintenance with a fine surface texture.
