Biometric Face Recognition Turnstile with Anti-Tailing Technology and Remote Control for Secure Access
| Place of Origin | Shenzhen,China |
|---|---|
| Nom de marque | hongchuangwei |
| Certification | CE/ISO 9001 |
| Model Number | CW309 |
| Minimum Order Quantity | 1 |
| Prix | Négociable |
| Packaging Details | wooden case |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
| Supply Ability | 100 pieces per day |
Contactez-moi pour des aperçus gratuits et des bons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.
xDétails sur le produit
| Name | tripod turnstile | Material | 304 Stainless Steel |
|---|---|---|---|
| Case Thickness | 0.94mm | Top cover Thickness | 1.14mm |
| lane width | 54cm | pass direction | bidirectional |
| waterproof | IP56 | outdoor use | support |
| Mettre en évidence | Anti-Tailing Face Recognition Turnstile,Biometric Access Control Turnstile,Remote Control Tripod Turnstile |
||
Description de produit
HCW Face Recognition Turnstile
Dustproof IP54 Biometric Face Recognition Turnstile Access Control System
Product Introduction

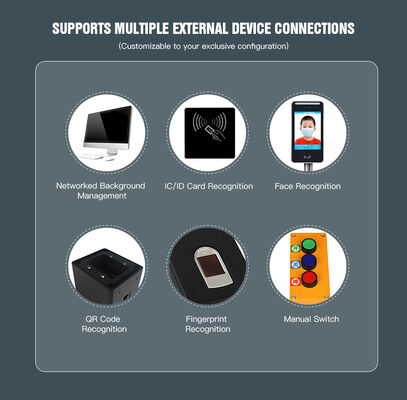

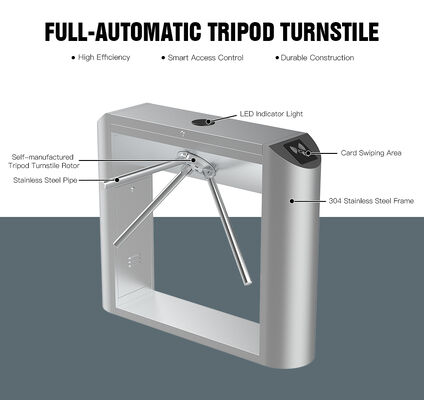

CW309 Intelligent bridge-type tripod turnstile uses industrial-grade MCU chip for long life and high stability. Features high efficiency and anti-tailing functionality, supporting various IC/ID readers, barcode readers, ID card readers, etc. Easily integrates with access control systems. Widely used in CBD business centers, government and enterprise office buildings, and high-end residential areas for entrance and exit control.
Scalable Functions
- Remote control and management through management computer (requires command connection)
- Counting function for real-time people statistics
- Personalized voice prompt function for user-friendly operation
Technical Parameters
| Product model | CW309 |
|---|---|
| Motor | Brushless motor 24V/60W |
| Power supply | AC220V±10%,50HZ±10% HZ |
| Working environment temperature | -25℃-70℃ |
| Relative humidity | 5%--90% |
| Number of passers | 20~30/min |
| Communication interface | RS485 |
| Normal service life | 5 million times |
| Channel width size | 550mm |
| Boom material | Stainless steel |

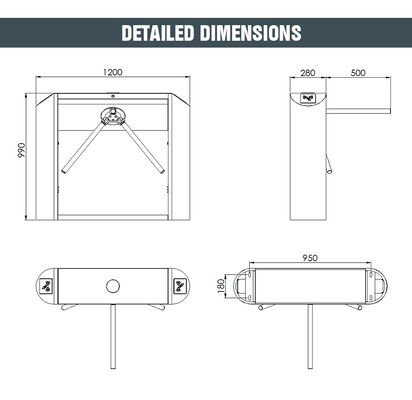

| Product size | L 1200mm x W 280mm x H 990 mm |

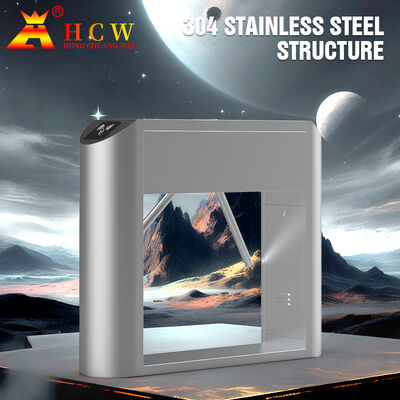

| Chassis frame | Chassis 1.0mm thickness, Top cover 1.3mm 304 stainless steel |
| Packing weight | About 45KG (single channel) |
Main Features
- Fault self-checking and alarm prompt function for easy maintenance
- Compatible with any control signal or button for single and two-way control
- Configurable single or two-way free passage
- Automatic reset function with adjustable delay
- High-brightness traffic light status indication
- Advanced anti-tailing function with automatic lock and alarm
- Fire protection input for integration with fire alarm systems
- Precise signal memory for improved passage speed
- Alarm prompt for illegal passage attempts
- Automatic lock and alarm when reverse external force is detected
- Anti-buffer function with automatic reset when external force disappears
- Unattended operation with automatic pole movement during power changes
- Fast and silent operation with electric power assist (45-60/min)
- Dynamic reminder with soft rotation for user-friendly operation
Frequently Asked Questions
- Company strength: 200+ employees, 50-person R&D team, 2 factories, 30,000+ sq.ft production facility, 200 product patents
- Product quality: Uses leading brand accessories from Germany, Japan, and China
- After-sales service: Life-long technical support via email, video, telephone (7*24 service)
- Lead time: 7-10 working days for regular products, 15-20 for customized products
- Warranty: One year warranty
- Payment methods: T/T, Western Union, MoneyGram, custody
- Transportation: DHL, UPS, EMS, FedEx, air freight, ocean freight
- Packaging: Protective film, cardboard box, standard export wooden box
- OEM/ODM: Custom manufacturing services available
