Intelligent Swing Barrier Turnstile with 40 Persons/Min Capacity Triple Anti Pinch Protection and Intelligent Recognition

  • Intelligent Swing Barrier Turnstile with 40 Persons/Min Capacity Triple Anti Pinch Protection and Intelligent Recognition
  • Intelligent Swing Barrier Turnstile with 40 Persons/Min Capacity Triple Anti Pinch Protection and Intelligent Recognition
  • Intelligent Swing Barrier Turnstile with 40 Persons/Min Capacity Triple Anti Pinch Protection and Intelligent Recognition
  • Intelligent Swing Barrier Turnstile with 40 Persons/Min Capacity Triple Anti Pinch Protection and Intelligent Recognition
  • Intelligent Swing Barrier Turnstile with 40 Persons/Min Capacity Triple Anti Pinch Protection and Intelligent Recognition
  • Intelligent Swing Barrier Turnstile with 40 Persons/Min Capacity Triple Anti Pinch Protection and Intelligent Recognition
  • Intelligent Swing Barrier Turnstile with 40 Persons/Min Capacity Triple Anti Pinch Protection and Intelligent Recognition
  • Intelligent Swing Barrier Turnstile with 40 Persons/Min Capacity Triple Anti Pinch Protection and Intelligent Recognition
Place of Origin Shenzhen,China
Nom de marque Hongchuangwei
Certification CE
Model Number CW404
Minimum Order Quantity 2 piece
Prix Négociable
Packaging Details wooden case
Delivery Time 7-15 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contactez-moi pour des aperçus gratuits et des bons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Special Features Built-in Siren Chassis Size 1200 length * 280 width * 1000 height (MM)
Vertical Chassis 380 length * 280 width * 1000 height (MM) SwingArm Length 500-900mm
Passing Speed 40 persons/min drive current >10mA
Working environment indoor and outdoor (shade shed) -10℃～70℃
Mettre en évidence

40 Persons/Min Swing Barrier Turnstile

,

Intelligent Recognition Swing Barrier Turnstile

,

Triple Anti Pinch Protection Swing Barrier Turnstile
Laisser un message
Description de produit
HCW Swing Barrier Turnstile with Intelligent Recognition Triple Anti-Pinch Protection
Professional Swing Gate Solution - Empowering a New Era of Intelligent Access for Commercial Spaces
Product Overview
CW404 Intelligent Swing Gates integrate next-generation IoT technology, combining smart recognition, safety protection, and data management to deliver a comprehensive access control solution for modern commercial spaces. Certified with ISO9001 Quality Management System, every unit meets industry-leading standards.
Core Technical Highlights

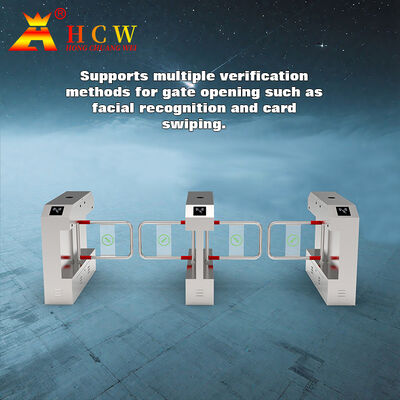

Intelligent Recognition System
  • Facial recognition (False acceptance rate <0.001%)
  • QR Code/NFC recognition (Response time <0.5s)
  • ID Card/IC Card recognition (Multi-protocol compatibility)
Safety Protection System
  • Triple anti-pinch protection: Infrared + Mechanical + Current detection
  • Emergency escape function (Auto-release upon power failure)
  • Anti-tailgating alarm system
  • Anti-collision design (Withstands up to 80kg impact force)

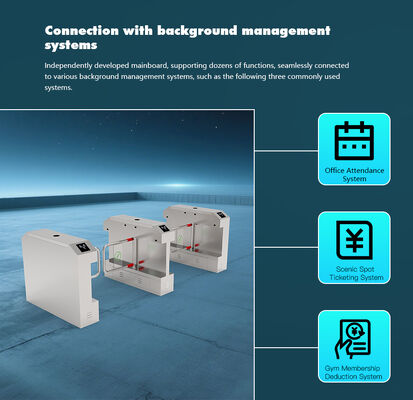

Smart Management Platform
  • Real-time foot traffic statistics & analysis (Accuracy rate ≥99%)
  • AI-powered anomaly detection
  • Multi-device cluster management
Technical Specifications
Product name CW404
Power Supply Voltage AC220V±10%,50/60HZ
Rated power 20W

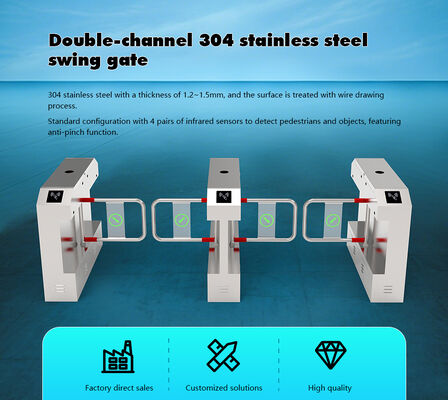

Material 304 stainless steel
Surface treatment Brushed finish
Thickness 1.2~1.5mm

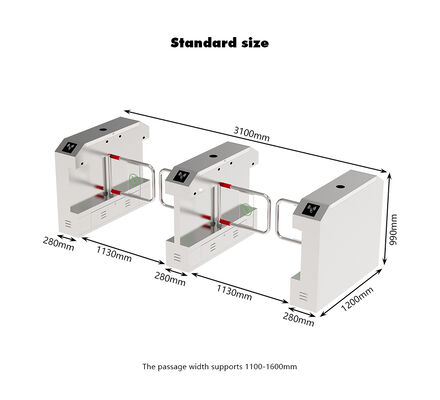

Size 1200*280*990mm(Chassis)
Opening speed 0.5~1s
Passage Width 1100~1600mm
Service Life 4 million cycles
Relative humidity ≤90%, no condensation
Gate opening signal relay
Drive current >10mA
Working environment -20℃~+60℃

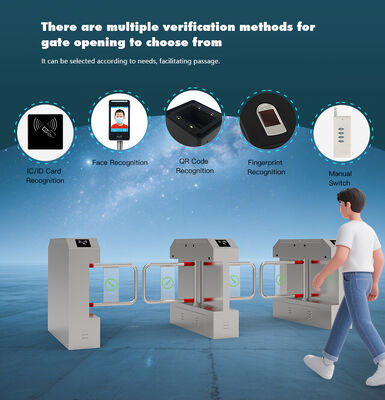

Access Control Methods Facial Recognition, Card Swiping, QR Code...
Applicable Locations Office buildings, scenic spots, apartments, schools, and more
Intelligent Swing Barrier Turnstile with 40 Persons/Min Capacity Triple Anti Pinch Protection and Intelligent Recognition 0
Intelligent Swing Barrier Turnstile with 40 Persons/Min Capacity Triple Anti Pinch Protection and Intelligent Recognition 1
Intelligent Swing Barrier Turnstile with 40 Persons/Min Capacity Triple Anti Pinch Protection and Intelligent Recognition 2
Intelligent Swing Barrier Turnstile with 40 Persons/Min Capacity Triple Anti Pinch Protection and Intelligent Recognition 3
