HCW Stainless Steel Full Height Turnstile with Programmable Control Power Off Unlocking and Durable Construction
| Lieu d'origine | Shenzhen, Chine |
|---|---|
| Nom de marque | Hongchuangwei |
| Certification | CE |
| Numéro de modèle | CW804 |
| Quantité de commande min | 1 |
| Prix | Négociable |
| Détails d'emballage | caisses en bois |
| Délai de livraison | 7-15 jours ouvrables |
| Conditions de paiement | T/T |
| Capacité d'approvisionnement | 100 pièces par jour |
Contactez-moi pour des aperçus gratuits et des bons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.
xDétails sur le produit
| Application | Extérieur et intérieur | Alimentation | AC 220V / 110V 10% 50 / 60MHz |
|---|---|---|---|
| Humidité relative | <95%, pas de densiation | Poids | 270 kg |
| Durée de vie | ≥ 6 millions de fois | Sens de circulation | trafic à sens unique ou bidirectionnel |
| Longueur de clôture | 600mm | ||
| Mettre en évidence | Programmable Control Full Height Turnstile,Power Off Unlocking Security Gate,Durable Turnstile Gate |
||
Description de produit
HCW Full Height Turnstile Stainless Steel Security Gate
Programmable One Way or Two Way Control with Power Off Unlocking
The HCW Full Height Turnstile is a durable, high-security stainless steel gate featuring programmable access control and fail-safe power-off unlocking. Designed for maximum security and reliability in demanding environments.
Key Features

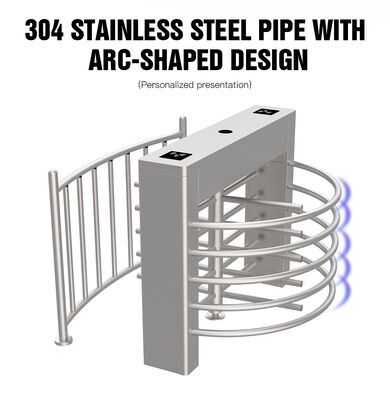

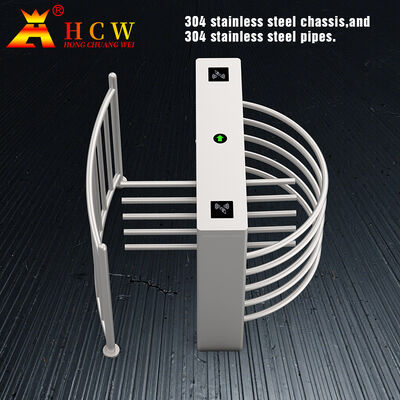

- Constructed with SUS304 stainless steel for superior durability and corrosion resistance
- Luxurious appearance with sturdy, long-lasting construction
- Customizable installation interface compatible with magnetic cards, barcodes, and ID card readers
- Smooth operation with soft buffering and low noise operation
- White heavy zinc acid electroplating for rust-proof protection
- Programmable control with multiple working modes (one-way or two-way)
- Power-off unlocking feature for emergency access
- Standard external electrical interface for easy system integration
- Sensitive impact detection for enhanced safety
- Designed for 10 million opening/closing cycles
- Automatic self-locking after passage
Applications

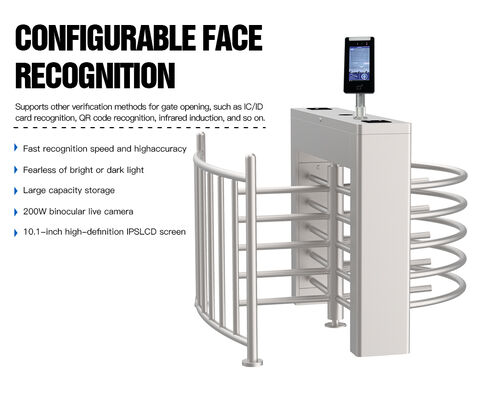

Ideal for railway stations, banks, high-end clubs, offices, gyms, swimming pools, and other secure areas. Supports RFID, fingerprint, and facial recognition systems. Can be integrated with infrared detectors and temperature controllers for various environments.
Technical Specifications
| Model | CW804 |
|---|---|
| Power Supply | AC220+10% 50HZ |
| Power Consumption | Static <50W, Dynamic <100W |
| Rotation Direction | One-way or two-way |
| Traffic Direction | One-way or two-way |
| Communication Interface | 232, RS485 |

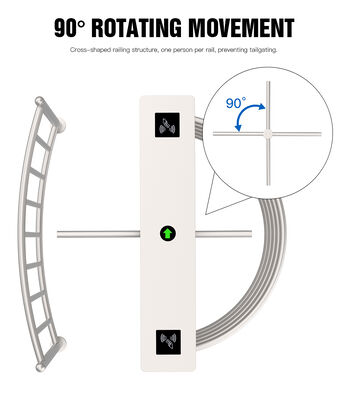

| Components | Standard case, 90° revolving door, control panel, movement, motor |

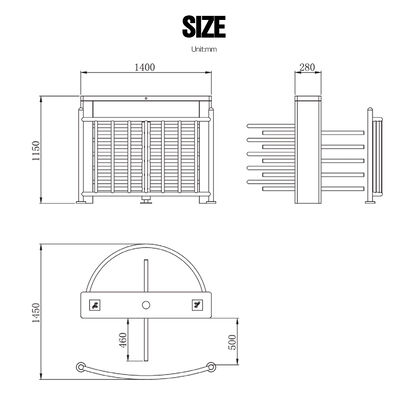

| Dimensions | 1400×1450×1150mm (Chassis: 1400×280×1150mm) |
| Barrier Length | 600mm (90° barrier) |
| Swing | ≤600mm |
| Opening Time | Not adjustable |
| Capacity | 20 persons/minute |
| Operating Temperature | -25℃ to +70℃ (humidity ≤95%) |
| Auto Reset | Adjustable time limit for automatic locking |
Product Images
