HCW 20-40 People/Minute Pedestrian Turnstile Gate and 20-40 People/Minute Throughput for Pedestrian Management
| Lieu d'origine | Chine |
|---|---|
| Nom de marque | HCW |
| Certification | CE/ISO 9001 |
| Numéro de modèle | CW490 |
| Quantité de commande min | 2 pièces |
| Prix | Négociable |
| Détails d'emballage | caisse en bois |
| Délai de livraison | 5-8 jours ouvrables |
| Conditions de paiement | T/T |
| Capacité d'approvisionnement | 100 pièces par jour |
Contactez-moi pour des aperçus gratuits et des bons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.
xDétails sur le produit
| Brand name | HCW | Modèle de produit | CW490 |
|---|---|---|---|
| Matériau du produit | Acier inoxydable 304 | Largeur du canal | 600-1000mm |
| Garantie | 1 an | Certificat | ISO 9001/CE |
| Température de fonctionnement | -25 ℃ ~ 70 ℃ | Type de moteur | 30W CC sans balais |
| Puissance nominale | 100W | Taille du boîtier | 235*200*980mm |
| Poutre infrarouge | 1 paire | Vitesse de course | 20 à 40 personnes/minute |
| Mettre en évidence | HCW pedestrian turnstile gate,high throughput turnstile gate,barrier turnstile gate with warranty |
||
Description de produit
HCW 20-40 People/Minute Pedestrian Turnstile Gate
The HCW CW490 is a high-performance turnstile gate designed for efficient pedestrian management in high-traffic environments. Built with stainless steel 304 construction, it offers superior durability and corrosion resistance, making it suitable for both indoor and outdoor installations.
Key Features
- Handles 20-40 people per minute for efficient pedestrian flow
- 30W DC brushless motor for quiet, maintenance-free operation
- 100W rated power for reliable continuous performance
- Rated for 5 million trouble-free operation cycles
- 600-1000mm adjustable channel width to accommodate various access needs
- Integrated infrared beam for enhanced safety and obstruction detection
- Certified with ISO 9001 and CE standards
- Backed by a 1-year warranty
Technical Specifications
| Brand Name | HCW |
|---|---|
| Product Model | CW490 |
| Product Material | Stainless Steel 304 |
| Channel Width | 600-1000mm |
| Warranty | 1 Year |
| Certificate | ISO 9001/CE |
| Operating Temperature | -25℃~70℃ |
| Motor Type | 30W DC Brushless |
| Rated Power | 100W |

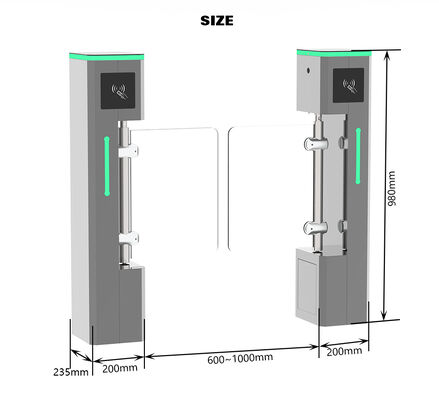

| Enclosure Size | 235*200*980mm |
| Infrared Beam | 1 pair |
| Running Speed | 20~40 people/minute |
| Trouble-free Operation Times | 5 million times |
Product Advantages
- Intelligent Access Control - Integrates with RFID technology and barcode support for secure, contactless entry
- Enhanced Public Safety - Infrared beam sensors prevent tailgating and unauthorized access
- Superior Durability - Withstands 5 million cycles and extreme temperatures (-25°C to 70°C)
- Efficient Traffic Flow - Rapid 20-40 people/minute throughput minimizes congestion
- Low-Maintenance Reliability - Energy-efficient, silent operation with minimal wear
Applications
- High-Traffic Public Transit: Ideal for metro stations and airports with seamless ticketing system integration
- Corporate & Institutional Security: Perfect for office buildings and university campuses with infrared anti-tailgating protection
- Event & Venue Management: Excellent for stadiums and concert venues handling large crowds

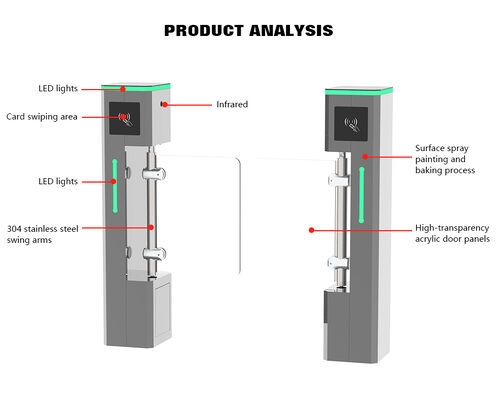

Product Images
